So we rolled the durango into the garage yesterday to start the swap, after a long weekend working on the meryota one ton.

the truck came with a 5.2l(318) gasser and a bad 46re. the plan is a solid reliable daily driver to haul the family, capable of high MPGs and some somewhat light towing- maybe tow a small camper around the USA someday.

the truck got a whopping 11.2 MPGs according to the HUD before we started tearing it down. I hope for mid twenties, as i see that number on similar swaps.

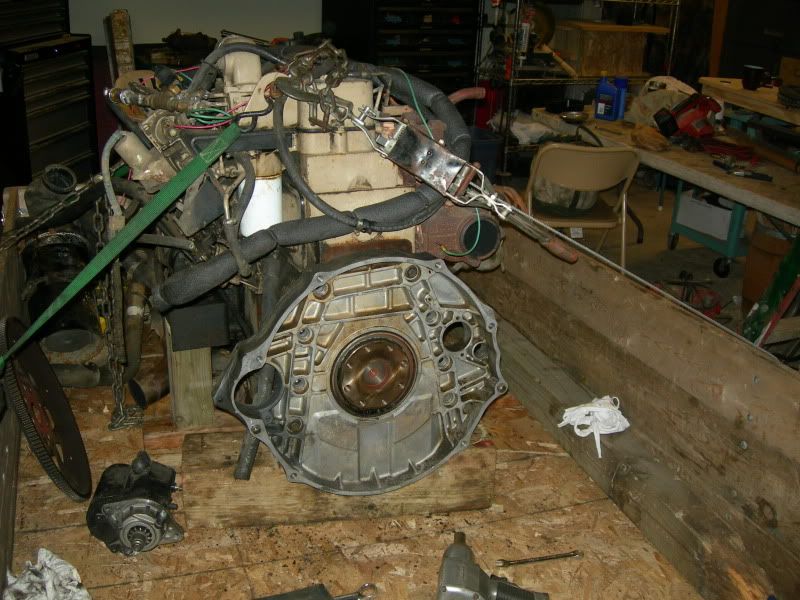

last week we went and pulled the 3.9 out of its home in a 95 oshkosh fed-ex truck, this one had the ford adapter, rear mount turbo and some other things that may be a bit different than some...

I got the intercooler piping as well, maybe it'll even work....

heres the engine/47re bolted up-

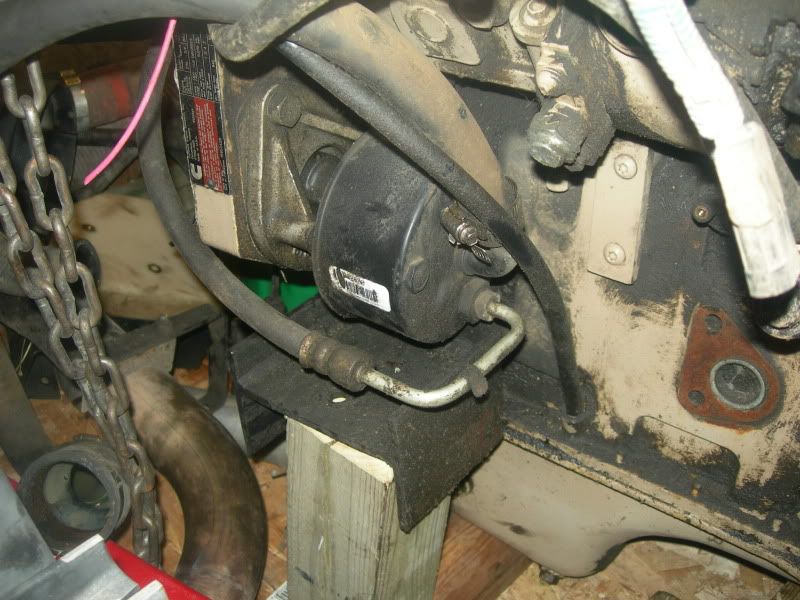

man, it has some serious I beam mounts-


·
Registered
Joined
·
345 Posts
I see you have a front sump oil pickup. btw the pan is the same only the pickup tube changes. nice


·
Registered
Joined
·
12,022 Posts
Is your 47re a gas or diesel model? They would have different shift points. You would want the one that came with the cummins.


·
Registered
Joined
·
720 Posts
Discussion Starter · #4 ·
the trans came from a 96 ram diesel. it bolts right up- the only other engine that shares the bell housing pattern is the V-10, FYI....

I found a local shop to make me a billet Torque Converter with a low stall for this( same thing as a 96 dodge unit, basically) for about $370.

man there is a lot of stuff to remove just to get the engine and trans out. not like the 89 toyota pickup we just did last weekend. it is just about there, should have the engine fit and be putting parts back together through the weekend.

since this is a Ppump, I do need to keep the intercooler-and we want AC, so that looks like one of the first challenges to figure out once the engine is installed.


·
Registered
Joined
·
720 Posts
Discussion Starter · #6 ·
I am in minneapolis.

I am making progress, albeit a bit slow this week. the engine is setting in place, now I need to get mounts fabbed up for it and figure out the front diff/ oil pan fiasco.

it fits the truck great and at this point i think i can fudge the radiator back a lil bit and use the Air to air intercooler which came off my fedex donor. my Torque convertor will be done this week, and maybe I'll have the engine mounts and oil pan done as well.


·
Registered
Joined
·
314 Posts
very cool, i am down in decorah about 3 hours south of the cites. I do make it up there often though. Id like to see it when your done if that could happen. Hopefully Ill be swapping my dakota this summer too.


·
Registered
Joined
·
720 Posts
Discussion Starter · #9 ·
quick update- the local torque converter shop decided to build me a killer diesel low stall billet cover torque converter to bolt up the 5.2 gasser to a 47re???? WTF????

but anyways, an entire week after I went down and saw they totally FUBARed my order, they called me back, not to say come get the right part, but said instead of the original $370 they now wanted $790+ dollars!!??? to build me the correct unit. so I went down there and told them where to shove it, got my money back and ordered one from online. UPS says it'll be here on tuesday.

meanwhile I have been figuring out belt routing and wiring harness mods.....


·
Registered
Joined
·
355 Posts
quick update- the local torque converter shop decided to build me a killer diesel low stall billet cover torque converter to bolt up the 5.2 gasser to a 47re???? WTF????

but anyways, an entire week after I went down and saw they totally FUBARed my order, they called me back, not to say come get the right part, but said instead of the original $370 they now wanted $790+ dollars!!??? to build me the correct unit. so I went down there and told them where to shove it, got my money back and ordered one from online. UPS says it'll be here on tuesday.

meanwhile I have been figuring out belt routing and wiring harness mods.....
:( Man what a bummer sorry to hear about your bad luck.

and as far as pullin out the gasser man they suck I would rather pull my 24V out of my Ram
10 times than a gas engine out of the Dakota
the 3.9 goes in and out a lot easier than the gaser :D
good luck keep it comming


·
Registered
Joined
·
314 Posts
I just got my 4.7 pulled, i should really start a build up thread.... what a bitch tho!!! we left the front bumper and transfercase on too, took like a good 10-12hrs.


·
Registered
Joined
·
720 Posts
Discussion Starter · #14 ·
yeah they sure do cram those gassers in there. i removed the front bumper and dropped the Tcase,i had a helper but it seems like we had it out in an evening....

as for my project- had to take about a month off from it, but finally got back into it the other night-
got the new TC mounted up, installed what is left of the 5.2 wiring harness on the engine/trans, roughed in tranny cooler lines, modified and installed the rear sump oil pickup, got all the math figured out and built brackets for the throttle, cruise, and kickdown linkage, adjusted the tranny bands, new filter,

oohh yeah- AND with the help of my lovely wife, We Got The Engine Installed For the LAST time!!!well, it better be anyhow.(it was the first time she came out to the garage and actually physically helped,and her first engine swap experience- i think she learned some new words, among other things)

we ended up dropping the steering box and drag link so we could finagle the crazy oil pan in there, things are tight. then i got the front diff re-mounted,and am working on the front end of the engine- AC, IC, radiator, crank sensor, etc, etc.....

still got a long row to ho, but its coming together....


·
Registered
Joined
·
314 Posts
yea im kind of a stubborn Norwegian, so i am told. it would have been waaaay easy to remove the transfercase and bumper, and the a/c.


·
Registered
Joined
·
720 Posts
Discussion Starter · #16 ·
yeah, well the missing bumper also made it pretty easy to drop the 4b in those nine or ten times.....

and despite all the cash the PO's supposedly dumped into the AC last summer, there was no charge in it, so pulling the condenser and lines was not a big deal either...


·
Registered
Joined
·
720 Posts
Discussion Starter · #17 ·
well i have gotten the ac/alt high mount custom setup fabbed,found a belt at napa, and am working on the radiator/condensor/Intercooler mounts. looks like i will be able to reuse the IC from the oshkosh, even using the old tubing, cut,cut, weld.....

I have room for the mech fan, so life will be a bit simpler there. in bottom pics rad+ modified shroud are in.













·
Registered
Joined
·
720 Posts
Discussion Starter · #19 · (Edited)
Thanks- i also wrote it right on the rad support w/ a sharpie. it is a 7 rib belt as that is what my alt and ac comp from the durango are.

of course, after i got everything fabbed up i found out that the tensoiner should be the last thing before the crank pulley,(NOT how the engine came, but it did have 200* of wrap on the alt, no A/C.) so when the ac loads the belt it doesnt flop. so we'll see how this setup works, but at this point i doubt that I'll be messing w/ AC until spring. I hope I have enough wrap on the alternator now.

for the rad, i simply fabbed new "ears" (2.5x2" steel scraps w/ 1"holes for the rubber bushings)to move the lower mounts back about 2", left the uppers intact. this allowed enough room for the condenser to be moved back, i did have to move the V brace forward, there is a hole for the wiring loom which i ran the same e=self threading bolt into, moving the top of the brace forward about an inch.

hopefully this weekend i'll get the exhaust downpipe welded up, final AIC mounts in, and then i need to drop the tank and work on that before i go re-installing the drivetrain. still need to get a target wheel made for the crank sensor, go to ratshack and get parts to build a TPS delete kit, and work out the final bits of wiring harness on the engine before i do a final radiator/ ac condenser/ AIC install.


·
Registered
Joined
·
66 Posts
Nice work. I had the same problem with the tensioner as you have mentioned, i.e. I put the tensioner in the same position as yours. When the alternator was loaded heavy it would pull the tensioner up, loosening the belt and cause it to squeel. I moved the tensiner to the bottom passengers side of the block and that fixed the problem. I took the target wheel out of the v-8 gas motor and mounted it in front of the crank pulley and mounted the sensor to the side. That worked well for me. You can use the throttle position sensor off your gas engine and turn and lock it in that position for the desired resistance to make the trans or whatever get the correct message rather than going to Radio Shack. Check my pics or ask any questions you may have.
Jim
